The ProxEye User’s Manual
(Document revision 3.00.00)
© 2000-2001 BAJAI Inc.
Information in this
documentation is subject to change without notice by BAJAI Inc.
The contents of all material
available in this document are copyrighted by BAJAI Inc. unless otherwise
indicated. All rights are reserved by BAJAI Inc., and content may not be
reproduced, disseminated, published, or transferred in any form or by any
means, except with the prior written permission of BAJAI Inc. Copyright infringement is a violation of
federal law, subject to criminal and civil penalties.
Legal Notice and Disclaimer:
BAJAI Inc. “including its employees and agents” assume no responsibility for any consequences resulting from the use of the information herein, or in any respect for the content of such information, including “but not limited to” errors or omission, the accuracy or reasonableness of factual or scientific assumptions, studies and/or conclusions, the defamatory nature of statements, ownership of copyright or other intellectual property rights and the violation of property, privacy or personal rights of others. BAJAI Inc. is not responsible for, and expressly disclaims all liability for, damages of any kind arising out of use, reference to or reliance on such information. No guarantees or warranties, including “but not limited to” any express or implied guarantees, warranties of merchantability or fitness for any particular use or purpose, are made by BAJAI Inc. with respect to such information.
Third Parties:
Reference herein to any specific
commercial products, process, or service by trade name, trademark,
manufacturer, or otherwise, does not constitute or imply its endorsement,
recommendation, or favoring by BAJAI Inc. and such reference shall not be used
for advertising or product endorsement purposes. Any or all websites used for example references only and may have
trademarks or copyrights and should be considered as proprietary.
Trademarks:
BAJAI, the BAJAI logo, Iajabot,
ProxEye, BajEye, EyeNalysis, EyeUpdate, EyeMail, OCULAR and “images,
everything” are registered trademarks, slogans or trademarks of BAJAI Inc.
BAJAI Inc. may have patents or pending patent
applications, trademarks, copyrights, or other intellectual property rights
covering subject matter in this document.
The furnishing of this document does not give any license to these
patents, trademarks, copyrights, or other intellectual property rights except
as a expressly provided in any written license agreement from BAJAI Inc.
TABLE OF CONTENTS
Using ProxEye
as a stand-alone proxy server
Troubleshooting Tips – Pass Through Mode
Appendix I - Obtaining and Installing Squid
Appendix II - Sample Output from proxeye -print
Appendix III -
BAJAI Categories
Introduction
This document is intended to be a user's manual for the ProxEye Internet filtering software from BAJAI. ProxEye is software that can be used either as an HTTP proxy server or as a plug-in for the Squid caching-proxy server. The main purpose of ProxEye is as a tool for administrators to manage the types of web-content that are accessible from computers on their networks.

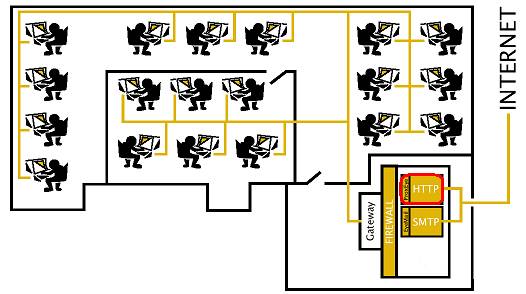

ProxEye works as a simple HTTP pass-through proxy server that performs extremely high speed analysis of requests for World Wide Web content. ProxEye can also act as your http proxy server should you not have one in place already. By using ProxEye as a pass-through authentication server allows you to make use of the specialized functionality of your current HTTP proxy server such as caching etc. As you can see from the diagram below, ProxEye will fit simply into your existing infrastructure and seamlessly provide online web activity management.
ProxEye must first be installed and then subsequently configured. The configuration allows you to create groups and individuals with specified access rights. Throughout this manual we assume that the reader is familiar with basic system administration and Internet concepts.
Installing ProxEye
How you install ProxEye depends on whether you are using it as a plug-in for another proxy server or as a stand-alone proxy.
On UNIX systems, the ProxEye executable will be found in the directory /usr/local/bin and the configuration files will be found in the configuration directory /etc/proxeye.
On Windows systems, both the executable and the configuration files are found in the installation directory. You can install ProxEye simply by running the ProxEye installer program that you downloaded. Follow the prompts and installation will be complete in seconds. Once installed, on the machine, you need to install the ProxEye services so that they can be accessed from the Windows Service Management tool.
STARTàBAJAIàPROXEYEàInstall ProxEye Services.
Once the services have been installed, you can start and stop the ProxEye services via the Services Administration Tool (See windows documentation for more information).
There are menu items that allow you to start and stop the services manually, but it is recommended that you administer the services through the service manager. This allows you greater control of the start-up settings for the service.
NOTE: In order to install the services, you must have administrator privileges on your Windows system.
Removing a ProxEye Installation (UnInstalling)
On UNIX systems, you simply stop the ProxEye server and remove the ProxEye installation.
On Windows systems, there is an uninstall applet provided. You will need to stop the service (either from the menu items provided or from the Serice Management tool) and uninstall the services. You can uninstall the services from the start menu:
STARTàBAJAIàPROXEYEàUnInstall ProxEye Services.
Once the services have been
stopped and removed for the system configuration, the uninstall applet will
remove the programs and all associated files.
Using ProxEye as a
stand-alone proxy server
Configuring ProxEye to run as a stand-alone proxy server is as simple as specifying the port on which ProxEye should listen for requests. This is done by editing the file proxeye.conf in the configuration directory and adding (or modifying) the line
passthru_port=<portnum>
where <portnum> is the port number ProxEye should
listen to. To then run ProxEye, use the command proxeye -passthru. At
this point ProxEye will listen for HTTP requests on the specified port.
Later, if you modify the ProxEye configuration files you will have to
restart ProxEye for your changes to take effect.
If your organization has another proxy server and you would like ProxEye
to send HTTP requests through this server, then edit proxeye.conf and add or
modify the lines
http_proxy=<proxy-machine-name>
http_proxy_port=<proxy-port-number>
where <proxy-machine-name> is the name of the machine
running your proxy server and <proxy-port-number> is the port number your
proxy server listens on.
Note that ProxEye is not a caching proxy. If you do not have a caching proxy but would like to install a free one, we recommend Squid. Instructions on obtaining and installing Squid can be found in of this manual.
Using ProxEye with Squid
If your organization is using the Squid proxy server then you can
have Squid use ProxEye directly and save the overhead of having HTTP
requests go through two proxy servers. To use Squid with ProxEye, you
need to tell Squid how to use it. To do this, edit the file
/etc/squid/squid.conf and look for the text redirect_program=xxx, where xxx can
be anything. If you find this line, change it to
redirect_program =
<path-to-proxeye>proxeye –squid
where <path-to-proxeye> is the directory containing the ProxEye executable. If you don't find the text, just add the above line to the file. Once you've done this, you have to tell Squid to reread its configuration information. Do this with the command squid -k reconfig.
Configuring ProxEye
Assigning users different levels of web activity privileges allows
you to specify web access rights per person or per group. It is possible to allow unrestricted access
to complete denial of access and all levels in between.
ProxEye is configured exactly the same whether you are configuring for Windows, Linux or Sun/Solaris. The operation of ProxEye is controlled through a set of configuration files found in the configuration directory. In Windows, this is the installation directory and the UNIX variants are in the /etc/proxeye/ directory. There are four primary configuration files found in this directory.
groups
This file allows you to create groups of users and define the
access criteria each group has. In this file you can create mnemonic
group names and apply the access criteria. For example, you can
specify group called upper_management and the specify the access
rules for the upper management group.
hosts
This file allows you to map computers (IP addresses) onto user groups.
In this file you specify which computers belong to which group you
have specified in the groups file.
overrides
This file allows you to specify which web objects (URLs) are accessible
to which groups you have specified in the groups file. In this file you
can override BAJAI categorizations as well as augment them.
proxeye.conf
This file allows you to specify the general configurations options for
the system. These settings are generally globally based settings.
The next 4 sections describe the format of these files in detail,
through the use of a running example.
Note to SQUID USERS: If you are experimenting with the ProxEye configuration files while reading these sections, be aware that in order for changes in the ProxEye configuration files to take effect, Squid must be reconfigured by using the command: squid -k reconfig.
Category Groups
By
default, ProxEye maintains a number of special categories, for URLs that have
been classified by BAJAI’s OCULAR™ technology. A full explanation of the
current list of categories supported by ProxEye can be found in the appendices.
BAJAI classification lists categorize web sites on the Internet. They are
available with the BAJAI list update subscription that came as part of ProxEye.
Currently, the following default categories are available from BAJAI:
noporn blocks access to adult and/or sexually explicit material
noaccess
blocks all web access
noads blocks web sites
dedicated to advertising
noshopping
blocks online shopping and auction sites
nosports
blocks web sites dedicated to sports
nofinance blocks banking, trading and other
financial sites
nojobsearch
blocks sites providing online job search tools
nonews blocks online news
and current events sites
nosearch blocks search engines
nogambling
blocks online gambling sites
nopersonals blocks online dating and personals
services
nomail blocks free online mail hosting sites
noalcohol
blocks sites dedicated to alcohol and/or tobacco
nohacking blocks sites offering information about
computer hacking
nodrugs blocks sites dedicated to
non-prescription/recreational drug use
nofamily blocks sites offering information about
family issues such as parenting, divorce
nogovernment blocks government sites
nohighband blocks high bandwidth (music and video)
downloads
noshareware blocks free software download sites
notravel blocks sites offering travel
information
notvradiomovies blocks sites dedicated to television,
radio, or movies
noweapons blocks sites offering information about
making and/or using weapons
nowebcam blocks online webcam sites
nowebhost blocks sites offering free web hosting
services
nogames blocks sites dedicated to video games
nohate blocks sites advocating intolerance
noacademic
blocks sites to
academic or educational institutions
In ProxEye, adding a host to one of these categories will prevent that host from accessing web sites in that category.
Groups
The purpose of the group file is to let ProxEye know the
names of the different groups of users in your organization. These group names
are used in the other ProxEye configuration files.
By default, ProxEye also creates a number of special
categories, for URLs that have been classified by BAJAI. The current
list of groups supported by ProxEye can be found in the appendices. The
categories noporn, nofinance and noshopping
used in the following example are all categories that are automatically defined
from the BAJAI lists. Another one of these special groups used in our
example is noaccess, and represents users who have no Internet
access except to sites specifically granted to them as overrides to noaccess.
In ProxEye, groups represent different classes of users.
For example, a large company might have a CEO, managers, system administrators,
and ordinary users. Throughout the
remainder of this manual, all examples refer to this fictitious company.
The file groups in the configuration directory contain a list of
group names; one per line, followed by a list of previously defined categories
that members of the first group automatically belong to. E.g:
GroupName category1 category2 …
categoryN
As well, you can create category groups by specifying a group name
and the list of categories that a part of that group. E.g:
CategoryGroup
category1 category2 … categoryN
Group names can contain any alphanumeric characters and are case-sensitive. For the example above, the groups file might look like the following:
EXAMPLE GROUPS FILE:
# the company does not allow employees to do personal finances
# or shopping on company time.
# this is the creation of a CATERGORYGROUP set called .nopersonal that contains the
# finance shopping categories.
nopersonal nofinance noshopping
# most employees should not do personal business or look at pornography
# this is the creation of a group named all that cannot surf personal sites (defined above)
# nor can that group surf adult web content.
all nopersonal noporn
# exceptions are made for these groups
# in this case, the CEO, managers and sysadmins are not being access controlled at all
ceo # the president of the company
managers # managers in the company
sysadmin # system administrators
# finally we want to create a special group for reprimanded users whose access has been
#completely revoked.
reprimanded noaccess # employees who have been reprimanded
The # character is a comment delimiter. Anything on a line
following the # character is ignored by ProxEye. This allows you to put
notes in the configuration files that make it easier to understand what is
going on.
Again, the purpose of the group file is to let ProxEye know
the names of the different groups of users in your organization. These group
names are used in the other ProxEye configuration files.
Hosts
Once a set of groups has been defined, it is necessary to tell ProxEye
which computers belong to which groups. This is the purpose of the hosts file
in the configuration file directory.
Each line of the hosts file contains a range of numeric IP
addresses followed by a list of group names. Each group name is prefixed by a +
or -, indicating whether or not the computers in the range are members of the
indicated group. For example, the line
192.168.0.1-192.168.0.255 +all
indicates that the computers with IP addresses in the range
192.168.0.1-192.168.0.255 belong to the group all. For convenience, it
is also possible to specify a single IP address, as in:
192.168.0.63 -all
In this case, the computer with IP address 192.168.0.63 is
excluded from the group all.
The above two lines have the same meaning as the following two lines:
192.168.0.1-192.168.0.62 +all
192.168.0.64-192.168.0.255 +all
Access Management by Date
Group membership directives (web access privileges as defined in
the groups file) can be made to depend on the time of day and the day of the
week. This is done by appending a time specification after all group
names. A time specification consists of an optional range of days, followed by
an optional range of times.
Days are specified either as a range, as in:
192.168.0.7 +noaccess [Mon-Fri]
or as a comma separated list, as in
192.168.0.7 +noaccess [Mon,Tue,Wed,Thu,Fri]
The above two lines have identical meaning. Here are making sure that the machine with the IP Address 192.168.0.7 has noaccess from Monday to Friday.
The abbreviations ProxEye uses for the days of the week are
Mon, Tue, Wed, Thu, Fri, Sat, Sun. These are not case-sensitive.
Access Management by Time
Times are always specified as ranges, in 24 hour format. For
example,
192.168.0.7 -noaccess [12:00-13:00]
specifies that host 192.168.0.7 is to be removed from the special
group noaccess between 12:00 and 13:00.
In simple terms, the machine 192.168.0.7 has access to the Internet
during lunch hour. Times for which the
start time comes after the stop time are assumed to go on to the next day, so
that
192.168.0.7 -noaccess [Mon][17:00-8:00]
tells ProxEye to remove the host 192.168.0.7 from the group noaccess (i.e allow access) from 17:00 on Monday night until 8:00 on Tuesday morning.
EXAMPLE HOSTS FILE
A full example of a hosts file for our fictional company might be:
# Nearly everyone has restricted access, with a few exceptions
# defined below
0.0.0.0-255.255.255.255 +all
# The CEO does not have the same constraints as everyone else
192.168.0.63 +ceo -all
# Nor do system administrators
192.168.0.50-192.168.0.59 +sysadmin -all
# Employees can shop or do their personal finances during non
# business hours
0.0.0.0-255.255.255.255 -nopersonal [Mon-Fri][12:00-13:00]
0.0.0.0-255.255.255.255 -nopersonal [Mon-Fri][17:00-9:00]
0.0.0.0-255.255.255.255 -nopersonal [Sat,Sun]
# This employee has had his Internet privileges revoked during
# normal working hours but still has privileges during lunch and after work.
192.168.0.7 +reprimanded -all
192.168.0.7 -reprimanded +all [Mon-Fri][12:00-13:00]
192.168.0.7 -reprimanded +all [Mon-Fri][17:00-9:00]
192.168.0.7 -reprimanded +all [Sat,Sun]
NOTE: The order in which entries appear in the hosts file is important.
Directives to add or remove hosts from groups are processed in the order in
which they appear in the file. For instance, the first entry in the example
hosts file above adds all machines to the group all while the second
entry removes the host 192.168.0.63 from the group all. If these two
entries were reversed, the host 192.168.0.63 would end up belonging to the
group all. The configuration
language was designed to allow the most flexibility for the least amount of
effort on the part of the administrator.
Essentially, our example file throws everyone into the same group and
then removes the exceptions. In our
fictitious company the CEO and Sys-Admin are not filtered at all.
Generally speaking, when you configure ProxEye you will want to
apply the most general rules first and the exceptions to those rules after you
have applied the general rule.
Overrides
At this point, all Internet access for computer users in our
fictional company have access prevented to URLS in BAJAI categories:
adult content, finance sites and online shopping sites, with the exception of
the CEO (ceo) and the system administrators (sysadmin). However,
the BAJAI access manager might prevent access to some sites that
employees need access to. Along the same lines, the BAJAI categories may
not include some sites that the company wants to restrict access to. These types of customized configuration
changes are achieved through the overrides file in the configuration directory.
Each line of this file contains a URL followed by a list of group names, each
prefixed with a + or -, depending on whether access is to be granted (+) or
denied (-) to that particular group.
For example the line
http://xxx.com/ -all
prevents computers in the group all from accessing web
pages in the domain xxx.com, while
http://this-company.com/ +reprimanded
allows computers in the reprimanded group to have access to
the web pages of this-company.
Since it is possible to define access rules that conflict with
each other, it is important to understand how these conflicts are resolved. ProxEye
applies override rules in a special order. To understand this order, we use
the example of the URL
http://www.companyx.com/foo/bar.html.
ProxEye first looks for a rule that applies exactly to the URL http://www.companyx.com/foo/bar.html. If such a rule
exists, then it is used.
ProxEye then looks for a rule that applies to the directory http://www.companyx.com/foo/. If such a rule exists,
then it is used.
ProxEye then looks for a rule
that applies to the host http://www.companyx.com/. If such a
rule exists, then it is used.
Finally, ProxEye looks for
a rule that applies to the domain http://companyx.com/. If such a rule
exists, then it is used.
Even with this ordering, it is still possible to have a conflict
for a single URL. For example, the line
http://www.stockquotes.com/ -all +ceo
disallows access from computers in the group all, but
allows access from computers in the group ceo. However, the IP address
192.168.0.63 belongs to both groups. In cases such as this, the + rule takes
precedence over the - rule, and access to http://www.stockquotes.com/ is granted to computers in the group ceo.
A complete example for our fictional company might look like the
following.
# People spend too much time on these sites
http://stockquotes.com/ -all
http://ebay.com/ -all
http://vegasgambling.com/ -all
# But the CEO needs to keep an eye on how the company is doing
http://stockquotes.com/ +ceo
# These are blocked by BAJAI, but we need access to them
http://xxx.com/ +all
http://neato.com/ +all
# Reprimanded employees don't have any access, except to
# the following sites, which they need in order to do their
# work
http://this-company.com/ +reprimanded
http://our-competitor.com/ +reprimanded
General Configuration
Options
Within the file proxeye.conf, you will setup your general configuration that applies to all
users. Each configuration option is
described in detail below. Each
configuration item is listed one per line and the # is the comment delimiter.
serialnumber
Default value: Demo licence
This allows you to specify a valid serial number for your ProxEye installation. This serial number will prevent the time-out “feature” of the demonstration software. Encoded within this serial number is number of seats purchased. Should you wish to increase the number of seats allowed to use ProxEye, you should contact BAJAI.
Example usage: serialnumber=1234567890ABCDEFGH
bajaiblockurl
Default value: http://www.bajai.com/redir/
This allows you set
the notification URL for WWW requests that are disallowed due to policy (adult
content or shopping for example). Since
this is a standard web page, you can customize it to your own needs. Commonly, you would like to place a reminder
of your policy for the user to review and a link to override the system (See
below).
Example usage: bajaiblockurl=http://www.bajai.com/blocked.html
noaccessurl
Default value: http://www.bajai.com/redir/
Example usage: noaccesssurl=http://www.bajai.com/noaccess.html
This allows you set
the redirect URL for WWW requests by users who have had their Internet
privileges revoked. Since this is a
standard web page, you can customize it to your own needs. Commonly, you would post your policy and
reasons for denial of access. This
notification page is most commonly seen by reprimanded users who have had their
Internet privileges revoked or by employees who need no external web access
except at designated times.
ordblockurl
Default value: http://www.bajai.com/redir/
This allows you set
the notification URL for WWW requests that are disallowed because the
administration has decided to block the site in the overrides blacklist. Since this is a standard web page, you can
customize it to your own needs.
Commonly, you would like to place a reminder of your policy and state
that this page requested was blocked because of bandwidth or productivity
concerns.
Example usage: ordblockurl=http://www.bajai.com/overrideblock.html
blockedfileurl
Default value: http://www.bajai.com/redir/
This allows you set
the notification URL for specific file requests that are disallowed because the
administration has decided to block such file types. Since this is a standard web page, you can customize it to your
own needs. Commonly, you would like to
place a reminder of your policy and state that this page requested was blocked
the file type causes excess use of bandwidth (.rm, .ram, .mpg etc) or has
security compromises (.exe, .cab, .vbs).
Example usage: blockedfileurl=http://www.bajai.com/blockefile.html
logfile
Default value: NULL.
This allows you to specify the location
and file name of the log file. Note
that because of ProxEye’s cross
platform nature, it is important that there are no spaces in the path or
filename.
Example usage: logfile=/etc/proxeye/proxeye.log
logfile=H:/logs/proxeye.log
maxlogentries
Default value: 0 (Infinite)
This allows you to specify the maximum number of entries within the
logfile. This feature allows you to
limit the ultimate size of the log file.
ProxEye does this by random sampling of the log file entries. This
sampling is uniform over the lifetime of the log file, and therefore gives an
accurate representation of user's behavior. Of course, the larger the number of
entries in the log file, the more accurate the representation.
If your concern is for limiting disk space over the accuracy of
the usage, you can set the limit to a reasonable number. As a basic rule, every 250,000 log entries
will require about 30 MB of disk space.
Example usage: maxlogentries=250000
logtransgressions
Default value: FALSE
This allows you to log all attempts to
access URLs that have been classified and subsequent access limited. This will allow the reporting tools to be
able to report on attempts to access URLs contrary to your policy.
Example usage: logtransgressions=true
logaccesses
Default value: FALSE
This allows you to log all attempts to
access URLs that have been classified and subsequent access limited. This will allow the reporting tools to be
able to report on attempts to access URLs contrary to your policy.
Example usage: logaccess=true
allow_https
Default value: TRUE
This allows you to specify your policy
regarding secure http. Options include
NONE, FILTER and ALL. This will let you
allow no https communication (NONE) or all https communications (ALL). As well, you can filter requests to https
based on the CONNECT site. See the
section on HTTPS and Tunneling Protocols below.
Example usage: allow_https=filter
http_proxy
Default value: NULL
This allows you to specify an alternate
proxy that PROXEYE will pass on filtered requests to. This may be the proxy on your firewall or it may be a third party
caching proxy. Setting this option
allows you to make use of your existing infrastructure and maintain the
benefits of your previous purchases. By
specifying this option, you are in effect using PROXEYE purely as request
classifier and policy alignment tool.
Example usage: http_proxy=192.168.000.255
http_proxy_port
Default value: 8080
This allows you to specify that port that
PROXEYE will pass on the valid requests to. This will be to port number that
the proxy specified by http_proxy listens on.
Example usage: http_proxy_port=1732
passthru_port
Default value: 1907
This allows you to specify that port that
PROXEYE will listen on. This will be to
port number that is configured within the users browsers.
Example usage: passthru_port=80
allow_bypass
Default value: TRUE
This
option allows end users to override ANY of the classifications. This option must be enabled to the override
tag to be accepted. The override tag is
a tag that indicates the classification process should be ignored. The tag is ‘—BAJAILOGGEDOVERRIDE’ which is simply appended to a URL
request.
To
invoke the bypass, a user simply needs to append the override tag to the URL
that they wish to request. For example:
http://www.overridethissite.com/--BAJAILOGGEDOVERRIDE
Typically,
you would want to provide a link via the blocked page that the user can click
on. This is done simply by adding the
following tag to your blocked URLs.
<A HREF="javascript:window.location.href = window.location.href + '--BAJAILOGGEDOVERRIDE'">GO THERE ANYWAY!</A>
NOTE: If allow_bypass is set to FALSE, then the override tag has NO EFFECT
Example
usage: allow_bypass=false
block_file_extensions
Default value: all
extensions allowed
This option allows you to specify
the types of files you want to prevent access to. Commonly this option is used to prevent heavy bandwidth downloads
by preventing real media (.rm and .ram), MP3s (.mp3), MPEG (.mpg or .mpeg), and
executables (.exe) from being downloaded.
The list is comma delimited.
System
administrators often wish to limit executables (.exe) and installation files
(.zip or .cab) to keep the system free of viruses and other problems.
Example
usage:
block_file_extensions=.mpg,.mpeg,.asf,.asx,.mp3,.rm,.ram,.exe,.zip
Debugging your
Configuration
When making major changes to an existing ProxEye
installation, you may want to copy the configuration files into a different
directory and edit the copies until you are sure they are properly debugged. To
have ProxEye use files from a directory other than the configuration
directory, use the -d <dir> option, which tells ProxEye to look
for its configuration files in the directory <dir>.
Once you have written ProxEye configuration files for your
installation, you can test them with the command proxeye -print. The -print option makes ProxEye
read the configuration files and print a summary of the group information onto
your terminal. The output of proxeye -print for our example is shown
in. Of course, the -d and -print options can be used together to test your
configuration before activating it.
The -print option prints a summary of group information at the
time it was run. Since it is possible to have group memberships that vary
with time, ProxEye provides a way to test these without having to wait.
Use the command line option -day to fix the day ProxEye uses to compute
its configuration information. Use the -time option to fix the time. For
example, to see the group information for Mondays at 12:15, use the command
line
proxeye -print -day Mon -time 12:15
The abbreviations of weekdays and the time
format are the same ones used in the ProxEye configuration files.
Once all your changes have been made and you are
certain that they have the effect you intended, you can copy the files back to
the configuration directory. Be sure to restart ProxEye to have your
changes take effect.
Automatic List
Updating
Automatic
list updating is configured using the program listsub that came with your PROXEYE
installation. This program contacts the
main BAJAI list update servers and maintains your lists for you on a daily
basis.
In Windows, listsub is a service scheduled to run
once daily. On the Unix platforms,
listsub is a program that the system administrator can set up a cron job to
execute once daily.
Log Files
ProxEye can also be configured to log web traffic in your organization.
Each log entry contains the date, time of day, client IP address, URL, and a
flag indicating whether the request was allowed or denied.
Logging options are controlled by entries in proxeye.conf
configuration file in the configuration directory. The line
logfile = <logfilename>
specifies the name of the file to which ProxEye should
write its logs. Note that ProxEye must have permissions to write to the
directory containing this file. Because
of the cross platform functionality of ProxEye, spaces in the log file names
should be avoided.
The line
logaccesses = <t/f>
tells ProxEye whether or not to log HTTP requests that are
allowed by ProxEye. Here <t/f> must be one of true or false.
Similarly, the line
logtransgressions = <t/f>
tells ProxEye whether or not to log HTTP requests that are
blocked by ProxEye.
Finally, the logs of HTTP requests can become very long. The line
maxlogentries = <number>
tells ProxEye to limit the number of entries in the log
file to less than <number>. ProxEye does this by random sampling
of the log file entries. This sampling is uniform over the lifetime of the log
file, and therefore gives an accurate representation of user's behaviour. Of
course, the larger the number of entries in the log file, the more accurate the
representation.
Redirection
When ProxEye denies access to a web page, it redirects the
user's browser to a different web page that presents the user with an
informative message saying that their attempted access was blocked. Adding or
modifying the following entries in proxeye.conf can change the page to which
the browser is redirected.
bajaiblockurl = <url1>
ordblockurl = <url2>
noaccessurl = <url3>
blockedfileurl = <url4>
and setting <url1-4> to be the URLs of the pages the user's
browser should be redirected to. The first URL is for requests that are blocked
because they are part of the BAJAI filter that comes with a list update
subscription. The second URL is for requests that are blocked because of
entries in the overrides file. The third URL is for requests that are blocked
because the user's computer is part of the noaccess group. The forth URL is for request to specific
file type that administration has restricted access.
HTTPS and Tunneling
Protocols
ProxEye can be configured to disallow, filter or allow all Secure HTTP
(HTTPS) and other tunneling protocols to be used. Setting the allow_https
variable in the proxeye.conf file does this.
allow_https = none | filter | all
The value none should be used if you want to disallow all HTTPS
requests. The value filter should be used if you would like ProxEye to
try and filter HTTPS requests the same way it would filter other requests. The
value all should be used if you would like ProxEye to allow all HTTPS
requests to go through without performing any filtering.
The user should note that because of the way in which HTTPS
tunneling works, ProxEye can only filter HTTPS based on the name of the
server to which the request is sent. HTTPS requests cannot be filtered at the
URL or directory levels.
Troubleshooting Tips -
SQUID
If your ProxEye configuration becomes corrupted to the
point where your organization's Internet access is lost, the first thing you
should do is disable ProxEye in Squid. Do this by finding the line
redirect_program = proxeye
in the file /etc/squid/squid.conf and commenting it out by putting
a # character in front of it. Then tell Squid to reconfigure itself with the
command squid -k reconfig. If this doesn't solve the problem, then it is your
Squid configuration or some other part of your network configuration that is
corrupted. The best source of information on administering and debugging your
Squid proxy is the Squid web site at http://www.squid-cache.org/.
When trying to debug your ProxEye configuration, try the
following.
Make sure you have
activated your ProxEye configuration with the command squid -k reconfig.
Look in the system log
file for messages from ProxEye indicating errors in your configuration
files. Under UNIX, ProxEye writes its status information to the file
/var/log/messages.
Make sure your web
browser is configured to use your Squid proxy server.
Make sure your web
browser is not using a cached copy of web pages by clearing your browser's
cache.
Make sure you have a
version of Squid that supports the redirector_program
directive (this directive was introduced in Version 1.1).
Check that ProxEye
is actually running by using a program like ps and looking
for a process named proxeye. If ProxEye is not
running, this is probably because of problem with the configuration files, and
a message to that effect should be in the system log file.
If all else fails, and if your ProxEye installation is
registered for technical support, try contacting BAJAI support staff by
emailing bajai@bajai.com. You can also get in touch with a technical support team member by
calling (613)731-9069.
Troubleshooting Tips –
Pass Through Mode
Should you have problems with
your configuration you can check the status of the configuration by running
ProxEye from the command line with the –print option.
Windows Note: You will need to do this from a “DOS prompt”
proxeye
–print
A full explanation of this
utility is explained in Appendix II.
Appendix I - Obtaining
and Installing Squid
The Squid proxy server is free software, distributed under the Gnu
Public License (GPL). The latest version of the server can be downloaded from
the Squid web page at http://www.squid-cache.org/. On the same web page you will find instructions on how to build
and install Squid.
The remainder of this section describes a few simple steps to get
your Squid server up and running. It is by no means comprehensive, and is only
intended to get you started. Once you have followed these steps, you should
look at the Squid documentation to learn about more advanced options.
Once you have built and installed Squid, you need to configure it
for your network by editing the Squid configuration file /etc/squid/squid.conf.
Follow these steps to configure Squid.
1
Choose
a port for Squid to listen on. By default, Squid is configured to listen on
port 3128. Unless you have a good reason to change this, you can leave it as
is. If you do choose to change it, you can do so by uncommenting the line
#http_port=3128
in squid.conf and changing the value of the port number.
2
Look
for the section of squid.conf labelled ACCESS CONTROL.
In
this section, define
an access control list for the computers in your network using a line
like
acl <mynetname> src 192.168.0.1-192.168.0.30/255.255.255.255
where <mynetname> is a name of your choice, and the range of
IP addresses is the range of addresses used by your network.
3
Tell
Squid to grant HTTP access to the machines on your network
using the line
http allow <mynetname>
where <mynetname> is the name you chose in the previous
step.
4
If
Squid is not already running, start it by typing the command squid. If Squid is already running then reconfigure it
by typing the command squid -k reconfig.
5
Configure
your browser to use the Squid proxy by setting the proxy
server to the name of
the computer running Squid and the proxy port to the port number you chose in
Step 1.
Appendix II - Sample
Output from proxeye -print
For the sample configuration used in this manual, running proxeye
-print during regular business hours produces the following output:
Ø proxeye -print -d . -day Mon -time 10:00
Host address range Groups
------------------ ------
[000.000.000.000 , 192.168.000.007) : noporn
noshopping \
nofinance nopersonal all
[192.168.000.007 , 192.168.000.008) : noaccess
reprimanded
[192.168.000.008 , 192.168.000.050) : noporn
noshopping \
nofinance nopersonal all
[192.168.000.050 , 192.168.000.060) :
sysadmin
[192.168.000.060 , 192.168.000.063) : noporn
noshopping \
nofinance nopersonal all
[192.168.000.063 , 192.168.000.064) : ceo
[192.168.000.064 , 255.255.255.255) : noporn noshopping \
nofinance nopersonal all
Running proxeye -print during non-business hours produces the
following output:
Ø proxeye -print -d . -day Mon -time 12:15
Host address range Groups
------------------ ------
[000.000.000.000 , 192.168.000.007) : noporn
all
[192.168.000.007 , 192.168.000.008) : noporn
noshopping \
nofinance nopersonal all
[192.168.000.008 , 192.168.000.050) : noporn
all
[192.168.000.050 , 192.168.000.060) :
sysadmin
[192.168.000.060 , 192.168.000.063) : noporn
all
[192.168.000.063 , 192.168.000.064) : ceo
[192.168.000.064 , 255.255.255.255) : noporn
all
The only difference is that terminal 192.168.0.7 is no longer part
of the group noaccess and has been added to the group all.
Appendix III - BAJAI Categories
ProxEye currently has 27
different categories that you can define your web filtering policy around. Each category has been listed below with a
short explanation of the content. If
you believe we are missing an important category, let us know!
Each URL is categorized as specifically as possible and cross-referenced where possible. This means that certain URLs will be classified into multiple categories. For example, the website http://www.foxsports.com/ would be classified in the following categories: SPORTS and TV_RADIO_MOVIES
Academic
This category contains educational institutions such as schools, universities, colleges and other sites that promote learning and academia.
Adult/Sexual Content
This category contains URLs that contain adult oriented themes and
activities. This includes sexual themes
and erotica style material such a writings, pictures that show or describe
sexual acts. Products that are targeted
for an adult market, including escorts, sex toys, strip clubs for example. Explicit materials be it photos, drawings,
videos, audio, or textual. All sites or
homepages that contain a warning of adult content or front pages that state you
must be an adult to view this information are included in this category.
This category DOES NOT CONTAIN URLs that contain educational information about sex, sexual orientation, STDs (Sexually Transmitted Diseases), health care issues or other medical information.
Alcohol / Tobacco
This category contains URLs that have blatant references to drinking alcohol or smoking. URLs that contain material that glamorizes or promotes alcohol or tobacco products.
Cult
This category contains URLs that have information on cults.
Drugs
This category contains URLs that have
information regarding illegal drugs and drug paraphernalia. URLs that contain information regarding the
cover up of usage and how to cheat drug tests.
URLs that contain information on substance abuse for the purpose of
obtaining a mind-altered state. e.g. glue/gas sniffing, huffing etc.
Family
This category contains URLs that have information regarding family issues such as divorce
Finance
This category contains URLs that have stock trading, stock tickers, banking etc. URLs that contain investment advice, money management and general financing. URLs with information such as accounting, banking, insurance and mortgage
Gambling
This category contains URLs
that allow gambling, or contain information about gambling such as betting
tips. Lottery sites, casinos and
betting pools would fall into this category.
Games /Leisure
This category contains URLs that contain online of downloadable games
and gaming information such as tips, cheats and codes. This category also contains leisure sites
such as comics, hobbies and other leisure activities. URLs dedicated to or part of the computer/video game industry
Government
This category contains URLs
that are government URLs, local to federal.
To date the list only contains Canadian and US government URLs on the
list.
Hacking
This category contains URLs
that have information about hacking computers, including information regarding
the illegal use of computers to commit crimes and URLs that contain information
about how to illegally hack passwords.
Hate
This category contains URLs
that have hateful, racist or other hateful information or otherwise promote
hate. Discriminatory behaviours based
on sexual orientation, religious beliefs, race, gender, age,
abilities/disabilities or political viewpoints. Historical revisionists and militant groups that promote hate.
This
category DOES NOT CONTAIN historical events; news or press coverage may include
the information that falls into the above guidelines.
High Bandwidth
This category contains URLs
that use high bandwidth. URLs that
contain audio/video files are included in this category. Streaming media, and live broadcasts also
fall into this category.
Job Search
This category contains URLs
that are job search/career oriented. Recruiters, headhunters and other such job
listings are included in this category.
This category contains URLs
that have offer free email services.
E.g. Hotmail
News
This category contains URLs
that have current news and recent events.
Personal ads/Dating
This category contains URLs
that have personals ads and dating services or advice.
Search
This category contains
search engines such as Yahoo, Google, AltaVista and other common Portals.
Shareware
This category contains URLs
that have shareware or freeware file downloads.
Shopping
This category contains URLs
whose purpose is shopping, consumerism and online purchasing. Auctions, retail stores, specialty shops and
restaurants are included in this category.
Sports
This category contains URLs
that have sports related themes. This
includes sports publications and fan pages.
Travel
This category contains URLs
that are relating to travel and vacationing.
This category includes airlines, travel agents, tourist pages and the
like.
TV / Radio / Movies
This category contains
contain information about TV shows, radio shows or movies. Television show fan sites, movie trailers
would be found in this category.
Weapons
This category contains that
have information on weapons such as guns, knives, bombs etc. URLs that promote the use of weapons or sell
weapons and related materials are in this category.
Web Cams
This category contains URLs
that have web cameras.
Web hosts
This category contains URLs
that host web content for free. E.g. Geocities, angelfire etc.
Web Rings
This category contains URL links to web rings. The effect is to break the webring and prevent further surfing. E.g. webring.org.
LICENSE AGREEMENT
I. License and Use
Subject to the
following terms and conditions, we grant you a royalty-free, nontransferable
and nonexclusive right:
(A) to use this
version of PROXEYE on any single networked computer for which licensed seat
users can access, provided that PROXEYE is (1) used on only one such computer
at any one time, and (2) used only by the licensed seat users; and
(B) to make and
distribute to others unmodified copies of the demonstration version of PROXEYE,
without any direct or indirect charge (except for the cost of the media in
which the demonstration version is fixed), for non-commercial uses only.
II. Limitation of Liability
ALL USE OF
PROXEYE IS ENTIRELY AT YOUR OWN RISK.
WE WILL NOT BE RESPONSIBLE TO YOU OR ANY THIRD PARTIES FOR ANY DIRECT,
INDIRECT, CONSEQUENTIAL, SPECIAL OR PUNITIVE DAMAGES OR LOSSES YOU MAY INCUR IN
CONNECTION WITH PROXEYE OR YOUR USE THEREOF, REGARDLESS OF THE TYPE OF CLAIM OR
THE NATURE OF THE CAUSE OF ACTION.
III. Indemnity
You will defend
and indemnify us against (and hold us harmless from) any claims, proceedings,
damages, injuries, liabilities, losses, costs and expenses (including
attorneys’ fees), relating to any acts by you in connection with PROXEYE,
leading wholly or partly to claims against us by third parties, regardless of
the type of claim or the nature of the cause of action.
IV. Disclaimer of Warranty
PROXEYE IS
PROVIDED “AS IS”, WITH ALL FAULTS. WE
MAKE NO WARRANTIES, EXPRESS OR IMPLIED, AS TO MERCHANTABILITY, FITNESS FOR A
PARTICULAR USE OR PURPOSE, TITLE, NON-INFRINGEMENT, OR ANY OTHER CONDITION OF
PROXEYE
V. Proprietary Rights
Except as
specifically licensed above, you may not copy, modify, adapt, merge, include in
other software, reproduce, translate, distribute, reverse engineer, decompile
or disassemble any portion of PROXEYE.
VI. Miscellaneous
This Agreement
contains the entire understanding between you and us relating to your use of
PROXEYE and supersedes any prior statements or representations. This Agreement can only be amended by a
written agreement signed by you and us.
This Agreement shall be interpreted and enforced under the laws of the
province of Ontario, Canada.
BY INSTALLING
PROXEYE, YOU ARE EXPLICITLY AGREEING TO THE TERMS AND CONDITIONS SET WITHIN.
